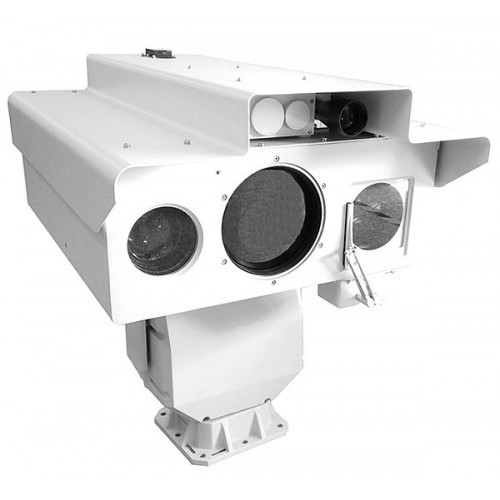

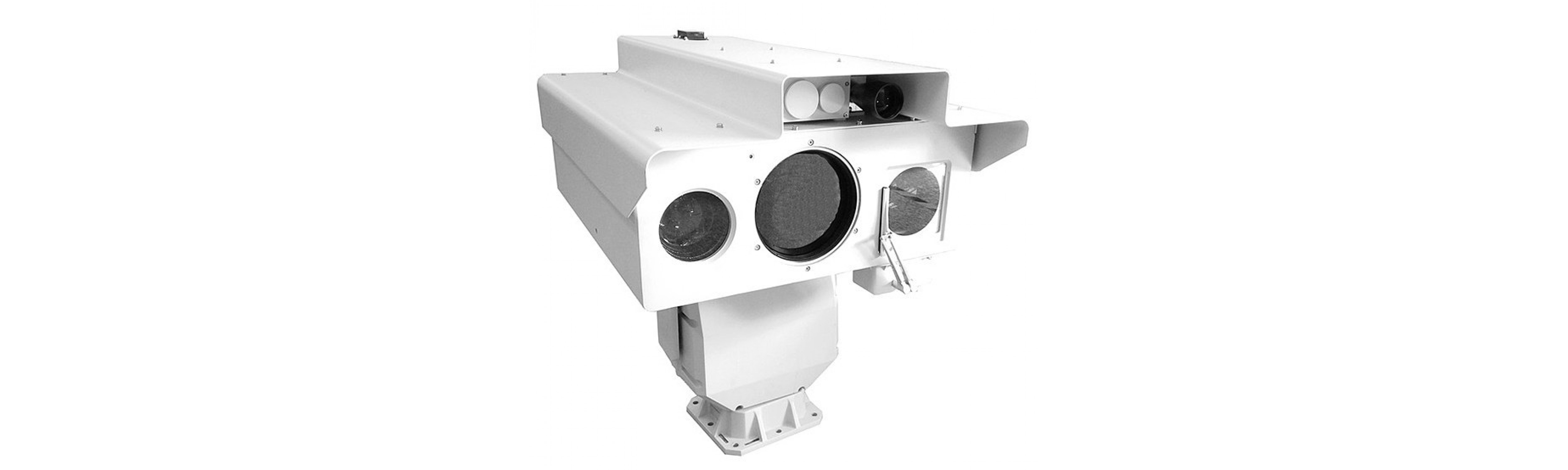

Security long range Distance 10 miles Thermal & Laser Monitoring System

Item Number: DS4020N210

In Stock

Price $150,000.00

Qty

Features

1. Three spectral imaging design, with
advantage of visible light imaging clearly,
thermal imaging camera detecting far and
laser night vision range large
2. Adopting continuous zooming thermal
imaging technology, imaging clearly, can
search in large area and recognize objectives
in long distance
3. Infrared detector with high temp se nsitivity,
with min temp resolution of 50mK
4. Synchronous zooming laser illuminating
system, long illuminating distance, large illuminating range, realizing monitoring in
0Lux complete black
5. Day and night low illuminance 2 megapixels color to black camera, d ay and night
continuous monitoring
6. MCIC multi tube core fusion mixed mode light homogenization technology, no
speckle and dark ring, high edge definition
7. Supporting fog penetration, backlight compensation, multistage wide dynamic
8. Optional auto focusing fun ction, realizing multiple focusing mode and triggering mode
9. Optional thermal imaging camera presetting function, remembering FOV of each
preset bit, enhancing working efficiency
10. 3D locating function, can realize frame selection magnifying function and clicking to
center function, reducing operating difficulty, enhancing device usability
11. External MMA fine adjustment mechanism, no need to disassemble to complete laser
alignment adjustment
12. Professionally designed shell, artistic, light, firm, anti high tem p, anti corrosion, water
proof, anti acid rain.

Specification:

Monitoring distance		Visible light camera		Day vision 8~10km, night vision 4~5km (object: human)
Thermal imaging camera	Object		Human (1.8m×0.5m)		Vehicle (2.3m×2.3m)
Detection distance		5600m		16000m
Recognition distance		1400m		4000m
Identification distance		700m		2000m
Visible light camera lens		Focal length		16.7~1000mm
FOV			0.45°~25°
Auto iris			DC drive
2× extender			Supporting
Fog penetrating			Supporting
Auto focus			Supporting
Wiper			Supporting
Visible light camera		Sensor		1/1.8''Progressive Scan CMOS
Color mode			ICR double filter, day & night switch
Shutter speed			Auto and manual adjustment
Camera control			Auto gain control, auto white balance, supporting manual and auto day&night mode switch
Fog penetrating			Open /Close is optional
WDR			Open/Close is optional
BLC			Open/Close is optional; range is optional
ROI			Supporting Open/Close, range is optional
Back focus fine adjustment			Supporting, can remotely debug
Noise reduction			3D digital noise reduction
Code format			H.264/MJPEG/MPEG4
Video resolution			1080p, supporting three stream
Video code rate			32Kbps~16Mbps
Video frame rate			50Hz:25fps(1920×1080),25fps (1280×720) 60Hz:30fps(1920×1080),30fps (1280×720)
Title overlay			Logo, date, time
Image adjustment			Brightness, contrast, saturation, sharpness etc.
Network protocol			TCP/IP/RTP/RTSP/HTTP/DNS/DDNS/DHCP/FTP/NTP/PPPOE/SMTP/UPNP
Features			Supporting heartbeat, video cover, code protection
