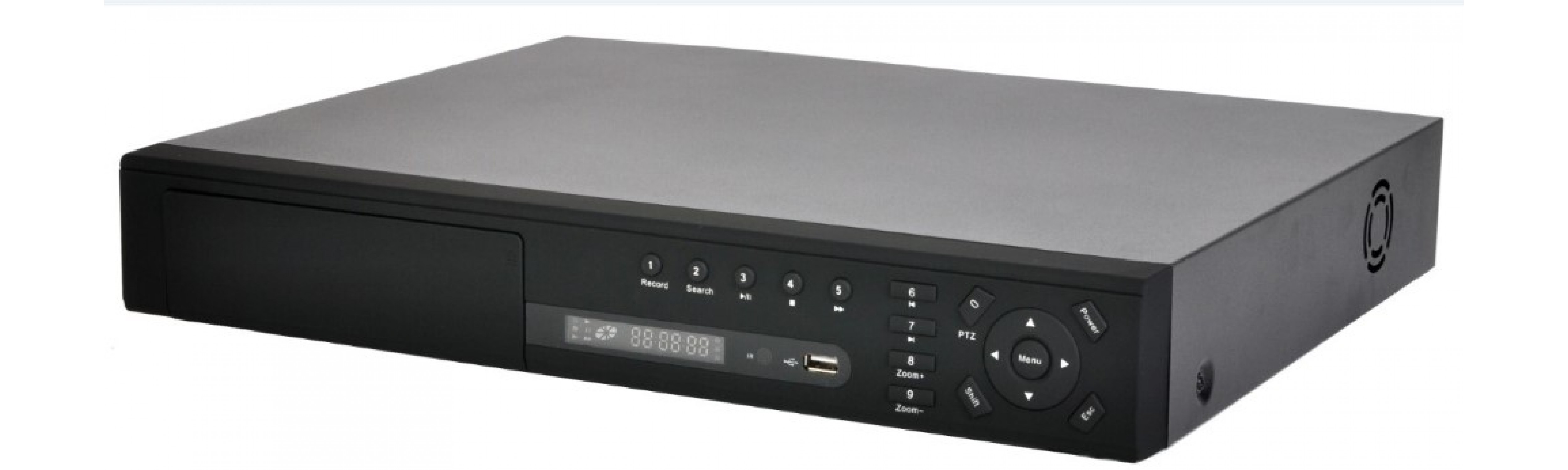

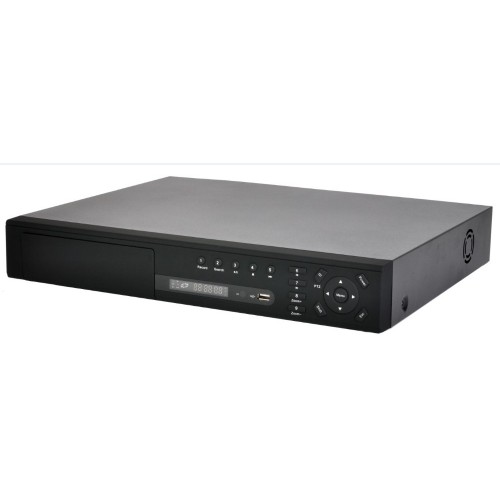

Security NVR 32 Channel H.265
+
NVR 32CH H.265+ XM Hi3536
Feature:
With H.265 High efficiency Video Compression
Ø With unique time screen in front of the panel, and displays recorder.
Ø Support Symbian S60V3/V5, Windows Mobile, Iphone, Android,, Blackberry and so on.
Ø Support 2*HDD & 4*HDD & 8*HDD( 3TB), with 2*USB2.0 for backup, burning, upgrading operation
Ø Stronger network service. support IE browse and CMS software
Ø Support Chinese, Russian, English, Italian, Portuguese, Spanish, French, German ..... 30 language
Ø Build-in 3322.org，dyndns.net，oray.net and myq-see.com free DDNS dynamic domain name
Ø With HDMI, Support 1080P high-definition (1920 * 1080P)
Ø With ONVIF protocol, can connect the ONVIF IP camera directly, also can by IE and CMS.
Ø Support P2P cloud functions
Specification:
| |
|
|
|
| |
|
Model |
DS8232 |
|
|
| |
|
Main processor |
Hi3536 |
| |
System |
Operating System |
Embedded Linux |
| |
|
System Resources |
Simultaneous multi-channel real-time recording, playback, network operation, USB backup |
| |
Operator |
Operator interface |
16-bit true color graphic menu operation interface, support mouse operation |
| |
Interface |
Preview |
1/4/8/16/24/32 |
| |
|
Video input (IP) |
24*5M/32*4M/16*1080P |
| |
|
Video standards |
PAL(625TVL,50f/s)；NTSC(525TVL,60f/s) |
| |
|
Video compression |
H.265/H.264 |
| |
Video |
Display quality |
Max:4K |
| |
|
Playback quality |
5M/4M/1080P |
| |
|
Decode |
4*5M/9*4M/16*1080P |
| |
|
Motion detection |
Depend on camera |
| |
Audio |
Audio compression |
G.711A |
| |
intercom |
Support |
| |
|
| |
Record |
Recording mode |
Manual>Alarm>Video Detection>Continuous |
| |
& |
Local Playback |
4*5M/9*4M/16*1080P |
| |
playback |
Search mode |
search by Time/calendar/event/channel |
| |
Storage |
Record Storage |
HDD 、network |
| |
&Backup |
Backup mode |
Network backup, USB hard disk, USB burner, SATA burner |
| |
|
Video output |
1ch HDMI ,1ch VGA output |
| |
|
Audio I/O |
1/1 |
| |
Interface |
Alarm I/O |
NO |
| |
Network interface |
1*RJ45 10M/100M /1000MAdaptive Ethernet port |
| |
|
| |
|
USB interface |
1*USB2.0 port,1*USB3.0 port（Reserved 2 pre interface） |
| |
|
Hard disk |
2*SATA(Up to 6TB) |
4*SATA(Up to 6TB) |
8*SATA(Up to 6TB) |
| |
|
PTZ control |
Control PTZ device by network |
| |
|
ONVIF |
Support |
| |
|
Power supply |
12V6A |
ATX |
