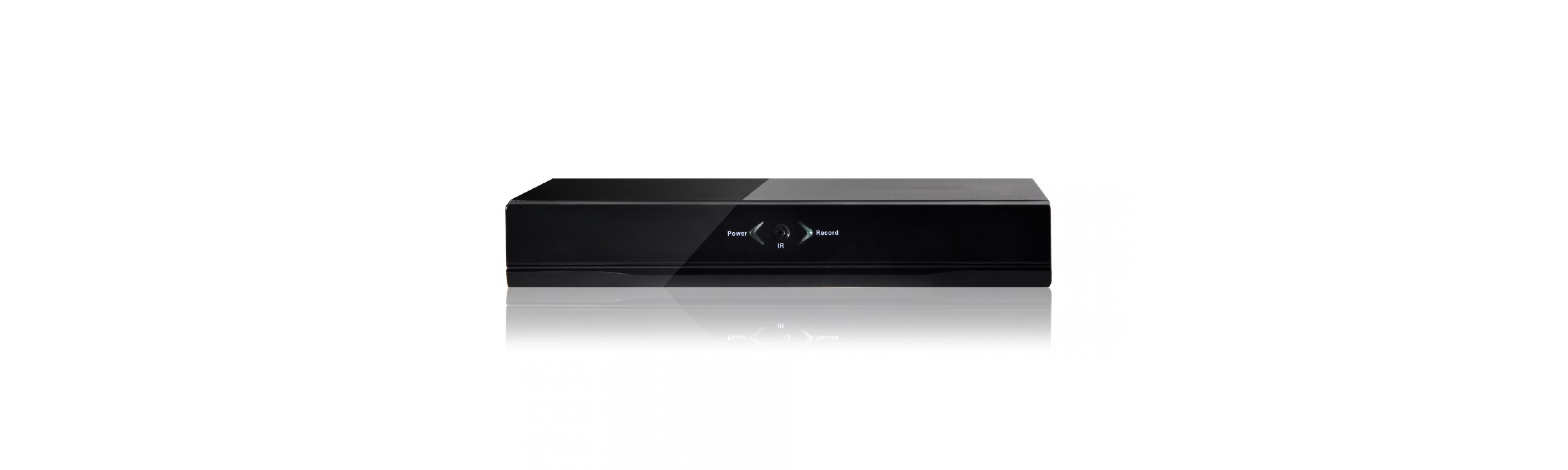

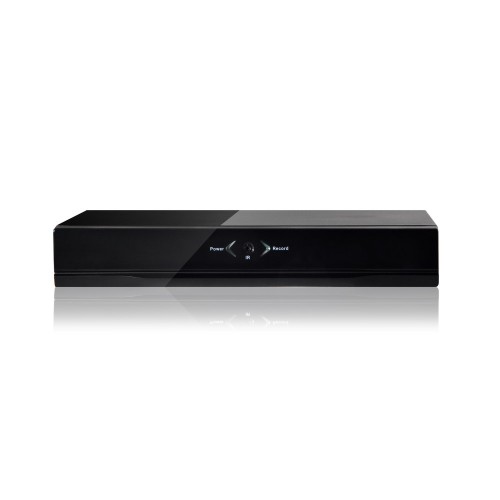

Security NVR 4 Channel H.256+
4CH H.265+ XM Hi3536D HD NVR
Feature:
Ø With H.265 High efficiency Video Compression
Ø With unique time screen in front of the panel, and displays recorder.
Ø Support Symbian S60V3/V5, Windows Mobile, Iphone, Android,, Blackberry and so on.
Ø Support 1*HDD( 3TB), with 2*USB2.0 for backup, burning, upgrading operation
Ø Stronger network service. support IE browse and CMS software
Ø Support Chinese, Russian, English, Italian, Portuguese, Spanish, French, German ..... 30 language
Ø Build-in 3322.org，dyndns.net，oray.net and myq-see.com free DDNS dynamic domain name
Ø With HDMI, Support 1080P high-definition (1920 * 1080P)
Ø With ONVIF protocol, can connect the ONVIF IP camera directly, also can by IE and CMS.
Ø Support P2P cloud functions
Specification:
| |
Model |
DS1104 |
|
| |
Main processor |
Hi3536D |
|
| System |
Operating System |
Embedded Linux |
|
| |
System Resources |
Simultaneous multi-channel real-time recording, playback, network operation, USB backup |
|
| Operator |
Operator interface |
16-bit true color graphic menu operation interface, support mouse operation |
|
| Interface |
Preview |
1/4/8/16 |
|
| |
Video input (IP) |
4*4M/16*960P |
|
| |
Video standards |
PAL(625TVL,50f/s)；NTSC(525TVL,60f/s) |
|
| |
Video compression |
H.265/H.264 |
|
| Video |
Display quality |
Max:4K |
|
| |
Playback quality |
5M/3M/960P |
|
| |
Decode |
2*5M/4*3M/4*960P |
|
| |
Motion detection |
Depend on camera |
|
| Audio |
Audio compression |
G.711A |
|
| intercom |
Unsupport |
|
| |
|
| Record |
Recording mode |
Manual>Alarm>Video Detection>Continuous |
|
| & |
Local Playback |
2*5M/4*3M/4*960P |
|
| playback |
Search mode |
search by Time/calendar/event/channel |
|
| Storage |
Record Storage |
HDD 、network |
|
| & |
Backup mode |
Network backup, USB hard disk, USB burner, SATA burner |
|
| |
Video output |
1ch HDMI HD output(Customized VGA interface) |
|
| |
Network interface |
1*RJ45 10M/100M Adaptive Ethernet port |
|
| |
| |
|
| |
USB interface |
2*USB2.0 port |
|
| |
Hard disk |
1*SATA(Up to 6TB for each disk) |
|
| |
PTZ control |
Control PTZ device by network |
|
| |
ONVIF |
Support |
|
| |
Power supply |
12V/2A |
|
| other |
Power Consumption |
<10W(Without HDD) |
|
| |
Work environment |
Temperature:0℃-＋55℃ , Humidity:10%－90%RH , Atm:86kpa－106kp |
|
| |
weight |
Around 2KG |
|
