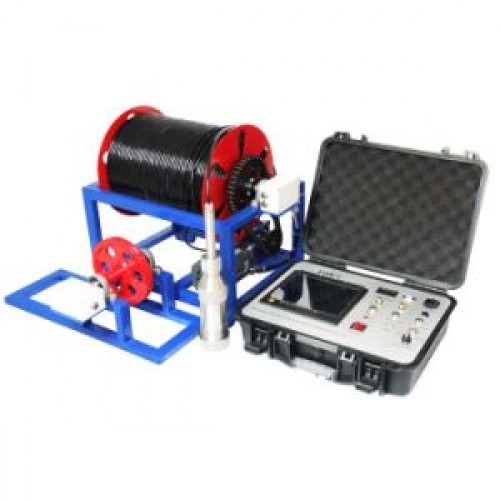

Borehole Camera & Water Well Inspection Camera
Function :
1 To inspection the water leakage of the well ,
2 To imaging the blockage of the well
3 To help the repair of the well
4 Provide broadcast quality video of the underwater world, back to the surface from up to within 1000m below,
5 This camera can be viewed in real time or recorded for later viewing
Feature:
1 Super high resolution color picture
2 Low light operation
3 Led underwater light
4 Stainless steel housing
5 Military grade water tightness cable
6 Ability to attach up to deep place and stand large pressure of water.
Technical Parameter:
| No. |
Description |
Parameter |
Remarks |
| 1 |
Imaging chip |
1/3”color CCD |
|
| 2 |
Resolution |
850TVL |
|
| 3 |
Focusing |
Automatic |
Can also be manual |
| 4 |
Lighting |
High power lighting LED |
|
| 5 |
Measuring depth |
0-2000m |
|
| 6 |
Color rotating lens |
12,000,000 pixel sensitivity 1.5 Lux |
|
| 7 |
Viewing Angle |
180° Hole Wall |
|
| 8 |
Scan |
Automatic scan |
|
| 9 |
Control |
Dynamic change speed or footage |
|
| 10 |
Illuminating brightness |
Automatic |
|
| 11 |
Connection |
USB port |
Can connect with PC |
Including:
1. Control Monitor Unit
2. Rotory Camera Standard 70mm
3.1000 Meter Cable with Electric Winch
4.Down Hole Pulley with Deepth Sensor
5.Build In Mini DVR with SD card
6. Conection Wire 3 pieces
(300 Lb)
|
