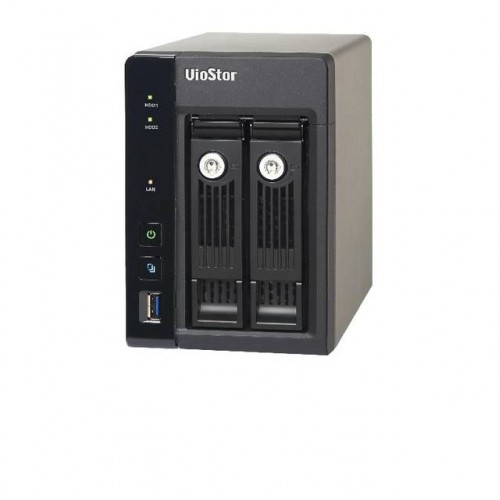

QNAP VS-2212-PRO+-US Intel Quad-Core 2.0GHz/ 4GB RAM/ 2GbE/ 2SATA3/ USB3.0/ 2-Bay Tower NVR 12 Cameras for SMB
Package: RETAIL
Mfr#: VS-2212-PRO+-US
UPC Code:
885022007615
Mfr Part Number: VS-2212-PRO+-US
- Hardware:
- CPU: Intel Processor (2.0GHz Clock Speed, 2.41GHz Max Turbo, Quad-Core)
- Memory: 4GB DDR3L RAM
- Flash Memory: 512MB DOM
- HDD Capacity: 2x 3.5" SATA 6Gb/s, SATA 3Gb/s hard drive
- HDD Tray: 2x hot-swappable and lockable tray
- LAN Port: 2x Gigabit RJ45 Ethernet Ports
- LED Indicators: LAN, HDD1, HDD2, Power, Status, USB
- USB: 3x USB 3.0 Ports (1 front, 2 rear), Support pen drive, USB mouse, USB keyboard, USB sound card, and USB UPS etc.
- Video Output: HDMI (HDMI 2 is reserved), Suggested video output resolution - 1920 x 1080 (Full HD)
- I/O: 6x Alarm input, 2x alarm output
- Audio: Audio In/Out for local display
- Buttons: Power button, One-touch-auto-video-backup button, Reset button
- Alarm Buzzer: System warning
- Secure Design: K-Lock security slot for theft prevention
- Recording:
- Max. number of channels: 12
- Supported Models: IP cameras; Generic cameras; Vcam App to turn your mobile phone into an IP camera
- Video Compression: H.264/ MPEG-4/ M-JPEG/ MxPEG (depending on the camera models)
- Recording Mode:
- Continuous/ scheduled/ manual recording
- Alarm recording by multiple events
- Pre-alarm and post-alarm recording
- Round-the-clock recording and smart recording when user-defined stream is supported on the camera model
- Edge recording
- Auto snapshot
- Recording Performance: Up to 30 fps at 1080P, 720P, VGA for each channel
- Megapixel Recording: Supports megapixel cameras (up to 40-megapixel)
- Recording Throughput: 180 Mbps
- File Format: AVI (QNAP codec is required for playback)
- Recording Enhancement: Real-time digital watermarking
- Download: QVR File Station, FTP, SMB/CIFS, Recordings export on local playback and remote playback (Windows and Mac)
- Disk Management:
- Max. number of HDD supported: 2
- RAID: RAID 0 (disk striping), RAID 1 (disk mirroring) Single, JBOD/ Linear
- RAID Features: Online RAID Capacity Expansion, Online RAID Level Migration
- HDD Utility: HDD S.M.A.R.T., bad blocks scan
- Network Service:
- Protocol: Support HTTP, HTTPS, TCP/IP, DHCP, Static IP, DNS, DDNS, UPnP, FTP, NTP, and SMTP
- Built-in DHCP Server: Yes
- Multiple Gigabit LAN: Failover, load-balancing, multi-IP settings
- File Services: FTP, SMB/CIFS
- Full HD Local Display:
- Max. Resolution of HW Decode: Resolution up to Full HD (1920x1080) per channel (H.264)
- Local Display Performance: Full HD 1080P 240FPS
- Display Mode:
- Local Monitoring: Multi-channel, sequential and full screen display modes
- Local Playback: Multi-channel and full screen display modes
- Max. Channel Supported per Page:
- Local Monitoring: Up to 36 channels per page
- Local Playback: Up to 4 channels per page
- On-screen Event Alert: Yes
- Local Monitoring Control: Dewarping function for fisheye cameras and Panomorph lens Manual recording, (two-way) audio, PTZ control (including optical zoom, focus control and preset position control), digital zoom
- Joystick Support: Joystick support for PTZ and preset position control
- Local Playback Control: Dewarping function for fisheye cameras and Panomorph lens Play, pause, rewind, fast forward, slow motion, frame by frame search, audio, digital zoom
- Recordings Export: Export multiple recordings to external USB storage as standard AVI files, optimized QNAP AVI files, QNAP encrypted AVI files
- Local Configuration: Yes
- Utility:
- QNAP Finder: The client application to discovery and quick setup of the VioStor NVR
- QNAP QVR Client For Windows: The client application used to remotely access QNAP NVR servers for performing video monitoring and playback functions on client PC
- QNAP QVR Client For Mac:
- The client application used to remotely access QNAP NVR servers for performing video monitoring and playback functions on Mac.
- Please note that multi-server monitoring and fisheye dewarping functions and QSCM Lite App are not supported
- Form Factor: Tower
- Fan: 1x 70mm quiet cooling fan (12V DC)
- Power Supply: External power adapter, 90W, 100-240V
- Power Consumption:
- In Operation: 16.34W (w/ 2x 1TB HDD installed)
- Certification: CE, FCC, VCCI, BSMI
- Dimensions (WxDxH): 4.02 x 8.50 x 5.91 inch / 102.0 x 216.0 x 150.0 mm
- Weight: 3.84 lbs / 1.74 kg
- Package Contents: VS-2212 Pro+, CD-ROM, 2x Ethernet cable, Power cord, Screw pack, Hard Disk Lock, Quick Installation Guide, Adaptor, Terminal Block
