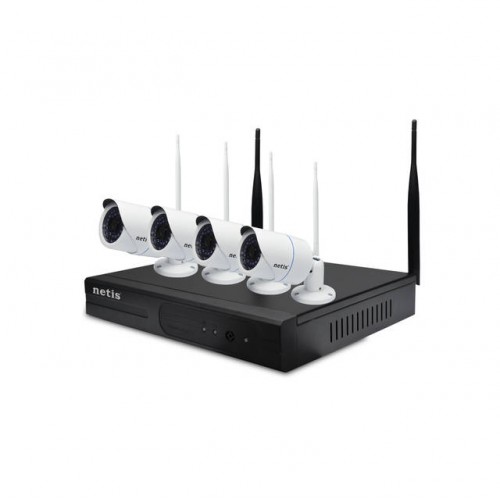

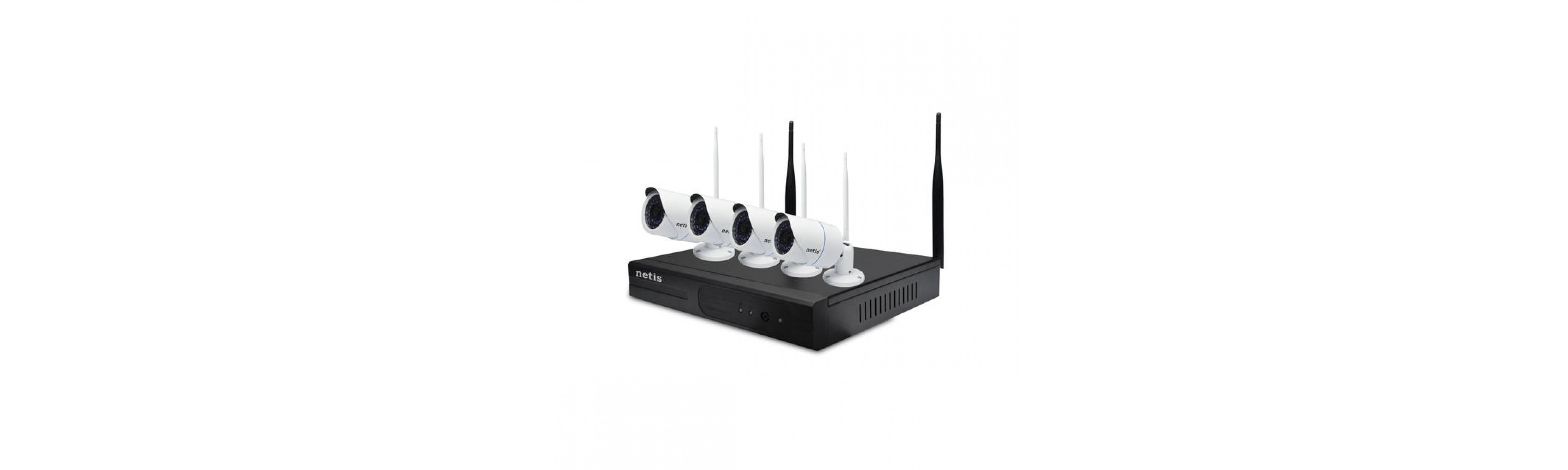

Netis SEK204 4-Channel Wireless IP Camera & NVR Security Kit
Package: RETAIL
Mfr#: SEK204
UPC Code:
088591202393
Mfr Part Number: SEK204
- 4CH Wireless NVR:
- MODEL No.: SEV204
- Operating System: Embedded Linux operating system
- VIDEO/IMAGE:
- Image Code Control: Image code quality adjustable, variable bitstream and constant bitstream optional
- Dual Stream: Each channel can set main stream and sub stream
- Video Standard: 960P(1280x960) 30fps
- Monitoring Image Quality: 960P(1280x960)
- Image Motion Detection: Each screen can set mutiple detection areas and set 6-level sensitivity (IPC Support)
- Recording Playback Quality: 4ch 960P playback simultaneously
- Recording Mode: Support manual, auto, dynamic detection, alarm trigger record mode (Partly needs IPC Support)
- Backup Way: Support U disk, USB mobile HDD, USB DVD-RW, network storage and backup
- Recording Storage: Local HDD, network
- VIDEO INPUT: IP video input - 4x (1280x960) IP camera
- VIDEO OUTPUT:
- HDMI Output: 1ch, resolution - 1920x1080P/60Hz, 1920x1080P/50Hz, 1440x900, 1366x768, 1280x1024, 1024x768
- VGA Output: 1ch, resolution - 1920x1080P/60Hz, 1920x1080P/50Hz, 1440x900, 1366x768, 1280x1024, 1024x768
- ALARM MANAGEMENT:
- Events Trigger: Built-in motion detection, schedule
- Notification Method: Alarm, Buzzer, E-mail, FTP
- WIRELESS:
- Standards: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
- Signal Rate: Up to 300Mbps
- Frequency Range: 2.4-2.4835GHz
- Transmit Power: <24dBm
- Data Transfer Rates:
- 802.11n:
- 40MHz(300Mbps, 270Mbps, 240Mbps, 180Mbps, 120Mbps, 90Mbps, 60Mbps, 30Mbps)
- 20MHz (144Mbps, 130Mbps, 115Mbps, 86Mbps, 57Mbps, 43Mbps, 28Mbps, 14Mbps) (Auto-Sense)
- 801.11g: (54Mbps, 48Mbps, 36Mbps, 24Mbps, 18Mbps, 12Mbps, 11Mbps, 9Mbps, 6Mbps)
- 802.11b: (11Mbps,9Mbps, 6Mbps, 5.5Mbps, 2Mbps, 1Mbps)
- Modulation Mode:
- 802.11b: CCK, QPSK, BPSK
- 802.11g/n: OFDM
- Wireless Security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS
- HARD DISK:
- Interface Type: 1x SATA interface
- Capacity:
- Built-in 1TB SATA HDD (only for Standard Packing)
- Support up to 4TB SATA HDD for update
- INTERFACES:
- Standards: IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX
- Network Interfaces: 1x 10/100Mbps Auto MDI/MDIX RJ45 WAN Port, 3x 10/100Mbps Auto MDI/MDIX RJ45 LAN Port
- USB Interface: 2x USB 2.0 Port
- LED Indicators: Power, Hard Disk,RUN
- Antennas: 2x 5dBi Detachable Antenna, SMA Connector
- Power Supply: DC 12V/3A (Output)
- SOFTWARE:
- WAN Type: DHCP, Static IP, PPPoE
- Port Forwarding: Virtual Servers, Port Triggering, UPnP, DMZ, FTP Private Port
- LAN: DHCP Client, DHCP Server
- Mobile Surveillance: Support iPhone, Android smart phone for remote control
- Others: Time Settings,Firmware Upgrade, Backup & Restore
- GENERAL:
- Certification: FCC, CE
- Dimensions(WxLxH): 210.0 x 257.0 x 45.0 mm
- Environment:
- Operating Temperature: -10°C~55°C
- Storage Temperature: -40°C~70°C
- Operating Humidity: 10%~90% non-condensing
- Storage Humidity: 5%~90% non-condensing
- 960P HD Wireless IP Camera:
- MODEL No.: SEC111
- Image Sensor: 1/3" Progressive scan sensor
- Min. Illumination: 0.1Lux @(F1.4,AGC ON), 0 Lux with IR
- Shutter time: 1/25s ~ 1/100,000s
- Lens: 3.6mm@ F2.0, Angle of view - 75.7°(3.6mm)
- Lens Mount: C/M12 (optional)
- LED: 36pcs LED(940nm)
- IR Distance: 10-15M
- Day& Night: ICR
- Wide Dynamic Range: Digital WDR
- Digital noise reduction: 3D DNR
- VIDEO:
- Image Compression: H.264
- Image Frame Rate: 32 Kbps ~ 16 Mbps
- Resolution: 960P(1280x720), VGA(640x480), QVGA(320x240)
- Stream: Dual stream
- Frame Rate:
- �??50Hz: 25fps (1280x960)
- 60Hz: 30fps (1280x960)
- Image Settings: Rotate mode, Saturation, Brightness, Contrast adjustable by client software or web browser
- NETWORK:
- Network Storage: NAS
- Alarm Trigger: Motion detection, Dynamic Analysis, Tampering alarm, Network disconnect, IP address conflict, Storage exception
- Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
- Security: User Authentication, Watermark, IP address filtering, anonymous access
- System Compatibility: ONVIF, PSIA, CGI
- WIRELESS:
- Standards: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
- Signal Rate: Up to 150Mbps
- Frequency Range: 2.4-2.4835GHz
- Transmit Power: <20dBm
- Data Transfer Rates:
- 802.11n:
- 40MHz (150Mbps, 135Mbps, 120Mbps, 90Mbps, 60Mbps, 45Mbps, 30Mbps, 15Mbps)
- 20MHz (72Mbps, 65Mbps, 57Mbps, 43Mbps, 28Mbps, 21Mbps, 14Mbps, 7Mbps) (Auto-Sense)
- 801.11g: (54Mbps, 48Mbps, 36Mbps, 24Mbps, 18Mbps, 12Mbps, 11Mbps, 9Mbps, 6Mbps)
- 802.11b: (11Mbps, 9Mbps, 6Mbps, 5.5Mbps, 2Mbps, 1Mbps)
- Modulation Mode:
- 802.11b: CCK, QPSK, BPSK
- 802.11g/n: OFDM
- Wireless Security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS
- Wireless Range: Outdoor - 150m, Indoor(no wall): 50-60m (Depend on environment)
- INTERFACES:
- Network Interface: 1x 10/100Mbps Auto MDI/MDIX RJ45 LAN port
- Antennas: 1x 4dBi Detachable Antenna, SMA Connector
- Power Supply: DC 12V/1A (Output)
- GENERAL:
- IR Range: Up to10-20m
- Certification: FCC, CE
- Dimensions (WxLxH): 70.0 x 205.0 x 55.0 mm
- Environment:
- Operating Temperature: -30°C ~ 60°C
- Storage Temperature: -40°C~60°C
- Operating Humidity: 10%~ 95% non-condensing
- Storage Humidity: 5%~95% non-condensing
- Package Contents:
- 1x SEV204(With HDD)
- 4x SEC111
- 1x 12V/3A Power Adapter
- 4x 12V/1A Power Adapter
- 4x Mounting Kits
- 1x USB Mouse
- 1x Ethernet Cable
- 1x Quick Installation Guide
